M36 Eye Bolt Lifting Capacity

Loads may slip or fall if proper eye bolt assembly and lifting procedures are not used.

M36 eye bolt lifting capacity.

A falling load may cause serious injury or death. For angular lifts adjust working load as shown above. Shoulder nut eye bolt g 277. This is done using shims from the manufacturer.

The eye bolt must be aligned during installation and tightened to secure it against rotation during lifting. 10 000 to 19 999 lbs. M36 4 54mm 5100 kg plain 40588 ea 101 52 m42 4 5. Working load limits for eye bolts are based on a straight vertical lift in a gradually increasing manner.

Metric thread collared eye bolt generally to din580 range from 95kg to 16 000kg. 304 stainless steel eye nuts are more corrosion resistant than galvanized steel. Eye bolt 140. Eye nuts are for vertical lifting only.

Never use regular nut eye bolts for angular lifts. M36 1984 3 17 81 54 32 72 63. If an angular lift is required a properly seated shoulder pattern machinery eye bolt must be used. Never exceed working load limits.

Create your own lifting eye by adding an eye nut to a stud or bolt. Load limits are based on a safety factor of 5 to 1. Lifting eye bolt sizes m06 to m36 product code. 30 000 to 39 999 lbs.

13 review s price breaks. Regular nut eye bolt g 291. Capacity applies to the eye nut only. This means the rigger must install the plane of the eye bolt inline with the sling leg.

It is not recommended that you use more than one shim to align the eye bolt with the sling leg. 20 000 to 29 999 lbs. Din 525 weld studs with hexagon nuts. Home lifting eye bolt sizes m06 to m36 additional information.

Never use to lift people or items over people. Rud rs grade 8 eye bolts non swivel range from 0 1 to 8 0 tonne. The stud or bolt you use will affect the overall capacity. Standard forged eye bolts should not be used with angular lifts.

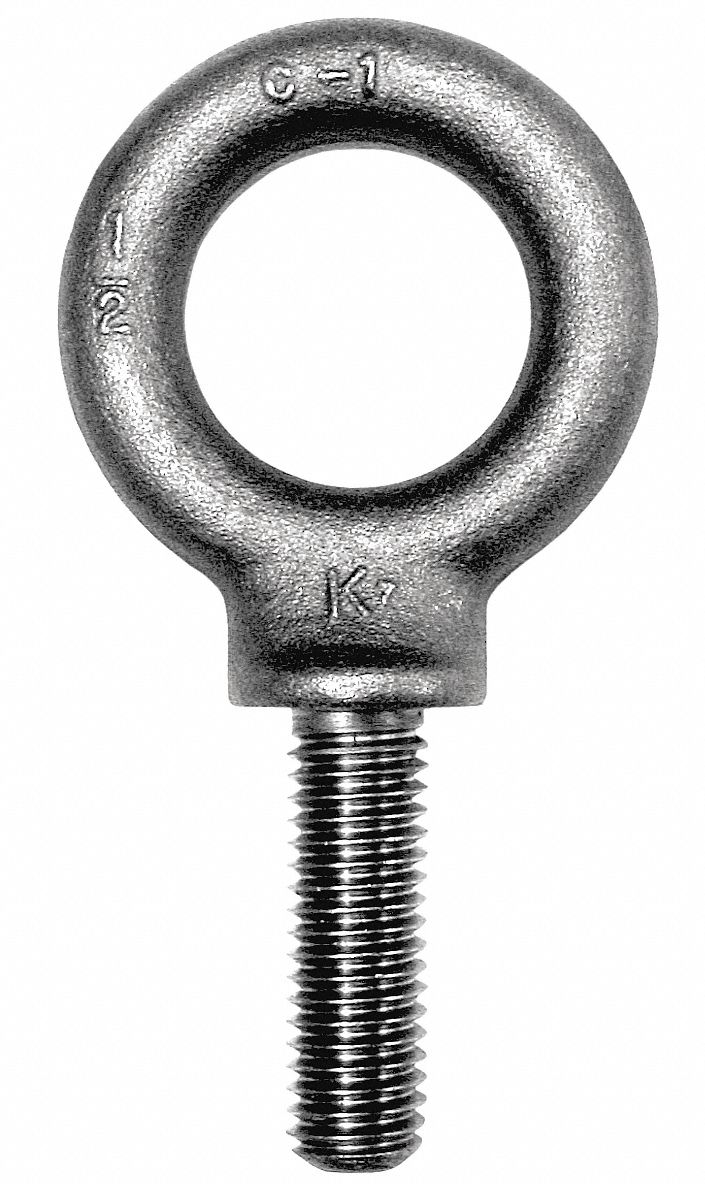

Din 529 a anchor bolts stone bolt din 529 b anchor bolts stone bolt. Always apply load to eye bolt in the plane of the eye. Create your own lifting eye by adding an eye nut to a stud or bolt. Shoulder pattern eye bolts.

Always tighten nuts securely against the load. Less than 10 000 lbs.
